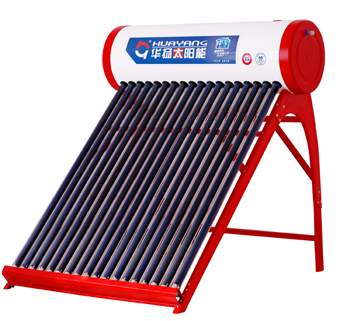

| Compact non-pressure solar water heater |
| SEMI-AUTO STYLE |
| Item |
Absorbing Area |
Capacity |
Insulation layer |
Installing size |
Loading(sets) |
| |
m2 |
Liter |
mm |
mm |
20' |
40' |
| HY-1647-15 |
1.39 |
120 |
45mm |
1190x1523x1510 |
64 |
118 |
| HY-1647-18 |
1.67 |
150 |
1358x1523x1510 |
48 |
114 |
| HY-1647-21 |
1.95 |
180 |
1584X1523X1510 |
46 |
110 |
| HY-1647-24 |
2.24 |
200 |
1775x1523x1510 |
44 |
92 |
| HY-1647-30 |
2.8 |
240 |
2165x1523x1510 |
38 |
80 |
| |
|
|
|
|
|
| HY-1658-15 |
1.6 |
140 |
50mm |
1340x1623x1575 |
52 |
108 |
| HY-1658-18 |
1.93 |
155 |
1565x1623x1575 |
48 |
100 |
| HY-1658-21 |
2.26 |
170 |
1825X1623X1575 |
44 |
90 |
| HY-1658-24 |
2.59 |
220 |
2015x1623x1575 |
40 |
84 |
| HY-1658-30 |
3.25 |
280 |
2465x1623x1575 |
32 |
68 |
| HY-1658-36 |
3.9 |
330 |
|
30 |
60 |
| |
|
|
|
|
|
| HY-1858-15 |
1.93 |
150 |
50mm |
1340x1790x1750 |
45 |
96 |
| HY-1858-18 |
2.32 |
180 |
1790x1790x1750 |
39 |
79 |
| HY-1858-21 |
2.71 |
210 |
1825X1790X1750 |
35 |
69 |
| HY-1858-24 |
3.1 |
240 |
2015x1790x1750 |
31 |
62 |
| HY-1858-30 |
3.9 |
300 |
2465x1790x1750 |
24 |
48 |
| HY-1858-36 |
4.68 |
360 |
2925x1790x1750 |
16 |
48 |
| |
|
|
|
|
|
|
| 1. 58x1600/1800mm: tube diameter: 58/47mm(outer/inner), length:1600/1800mm |
| 47X1600mm: tube diameter: 47/37mm(outer/inner), length:1600mm |
|
| All tubes are SC( High efficiency style) tubes. |
|
|
|

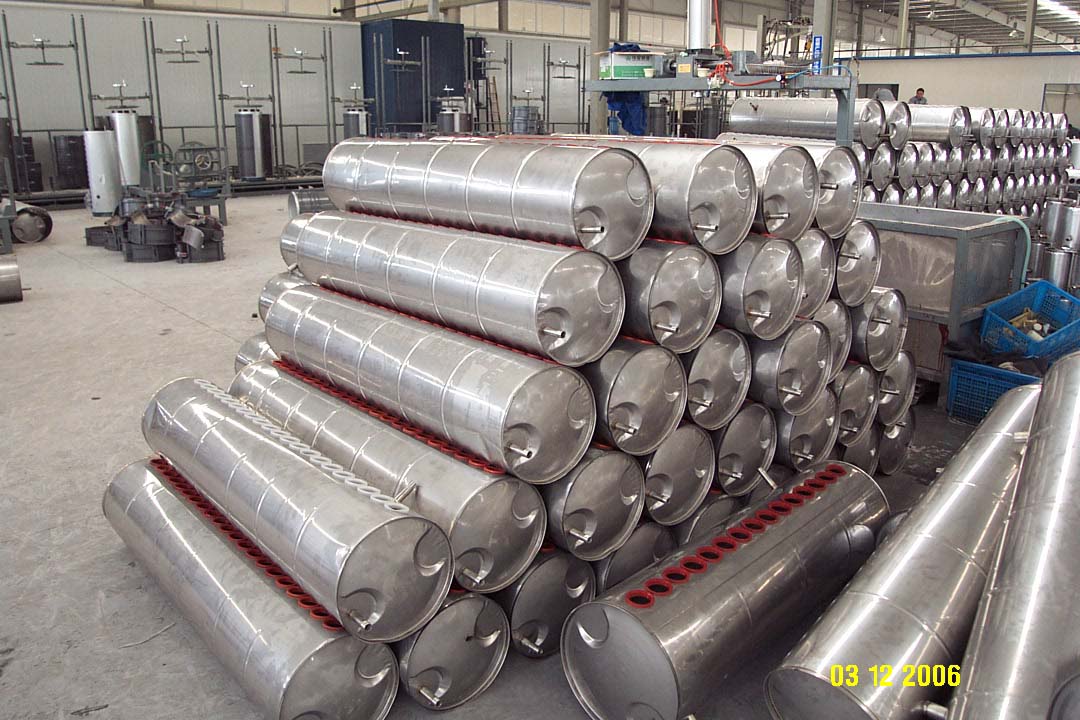

| 2. Bladder material: SS304-2B, 0.41mm thickness. |
|
|
|
| 3. Crust material: Zinc inside and color PU coated outside steel sheet, 0.35mm thickness. |
| 4. Insulation layer: polyurethane foaming, 45-60mm thickness,Density: 38-40kg/m3 |
| 5. Using high quality high temperature silicon rings for sealing. |
|
|
| 6. All with new patent designing aluminum alloy/color coated steel end supports, |
|

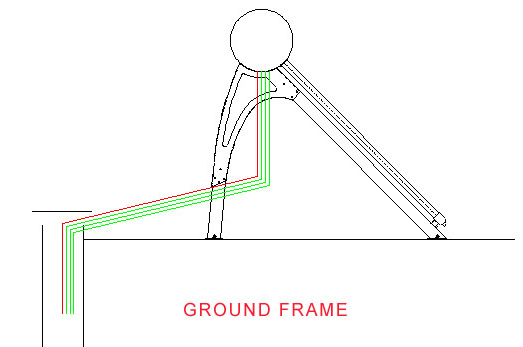

| 7. KF style frame: Galvanized angel steel material, zinc plating inside and poly powder coated outside, without reflector plates, suitable for roof and ground insalling both. |
|
|
| 8. System working pressure: 0Mpa, testing pressure: 0.3Mpa |
|
|
| ***( CHOOSE) Can be fitted with electric heater as backup, 1500W, 220V, 50Hz |
| ***(CHOOSE) Can be fitted with special design control box |
|
|
