| Compact pressure solar water heater |
|
| ITEM |
CAPACITY |
Installing mm |
Loading |
Weight |
| 58/47x1800mm |
liter |
L*H*W |
sets/20' |
sets/40' |
kgs |
| HY-CY1858-8 |
80 |
850*1790*1920 |
72 |
148 |
70 |
| HY-CY1858-15 |
130 |
1420x1790x1920 |
45 |
96 |
100 |
| HY-CY1858-18 |
160 |
1645x1790x1920 |
39 |
79 |
110 |
| HY-CY1858-21 |
190 |
1870x1790x1920 |
35 |
69 |
128 |
| HY-CY1858-24 |
220 |
2095x1790x1920 |
31 |
62 |
150 |
| Remark: |
|
|
|
|
|
| 1. 58x1800mm: tube diameter: 58/47mm(outer/inner), length:1800mm |
|
|
| All are SC( High efficiency style, 3 coating layers) tubes. |
|
|
| 2. Bladder material: SS304-2B, 1.2mm thickness. |
|
|
|
| 3. Crust material: Color steel sheet, 0.5mm thickness. |
|
|
|
| 4. Water tank Diameter: 360mm/460mm (outer/ inner) |
|
|
|
| 5. Insulation layer: polyurethane foaming, 50mm thickness,Density: 35-38kg/m3 |
|

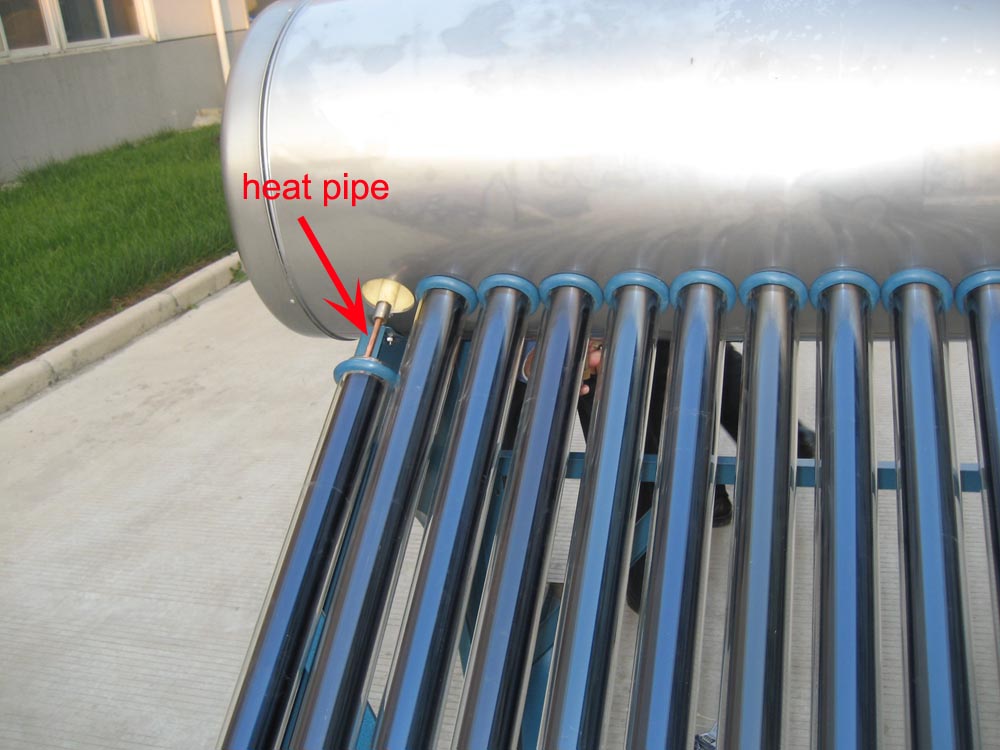

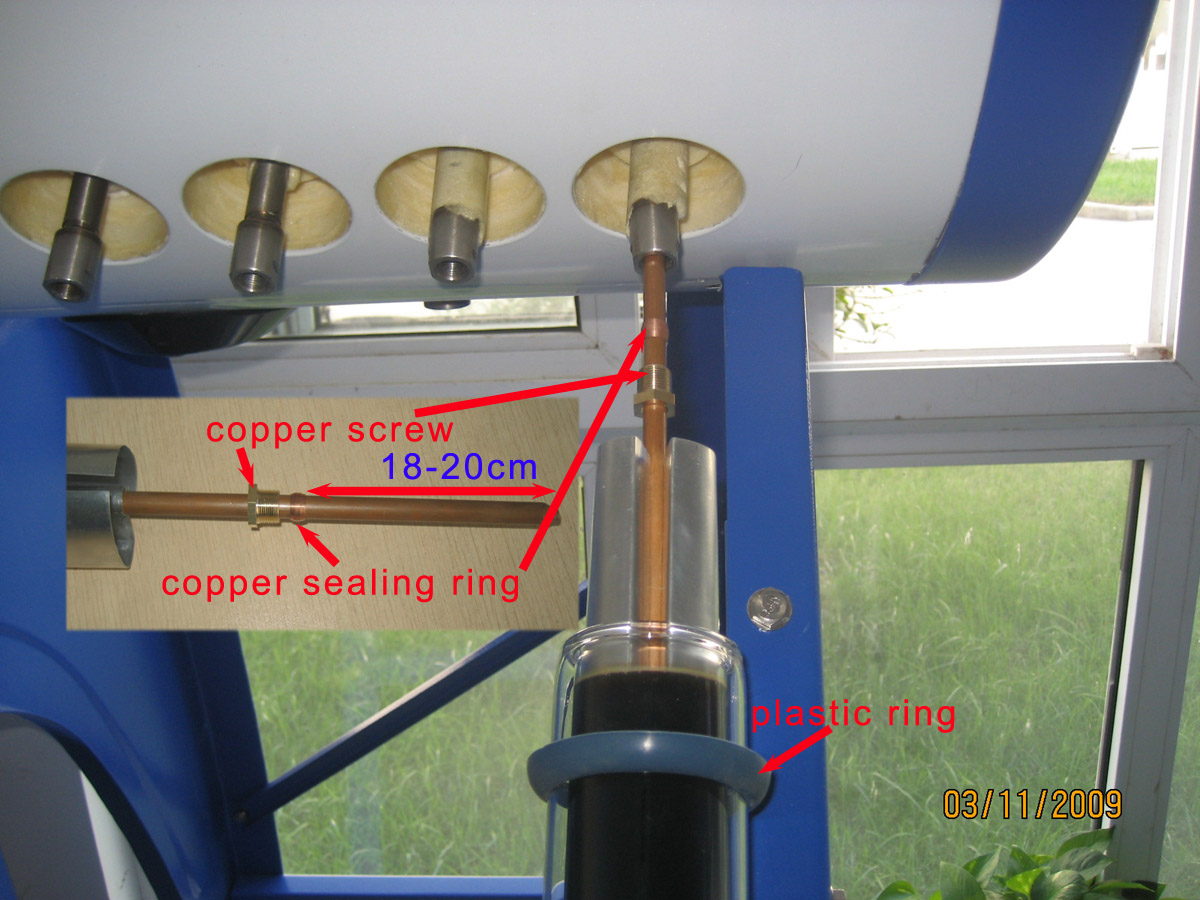

| 6. Small heat pipes + aluminum fins inside the vacuum glass tubes, sealed with copper screws. |
| 7. All with new design nylon end support(adjustable), easy to install, stronger and longer lifetime. |
| 8. KF style frame: new design bended angle steel, zinc inside and poly powder coated outside, |

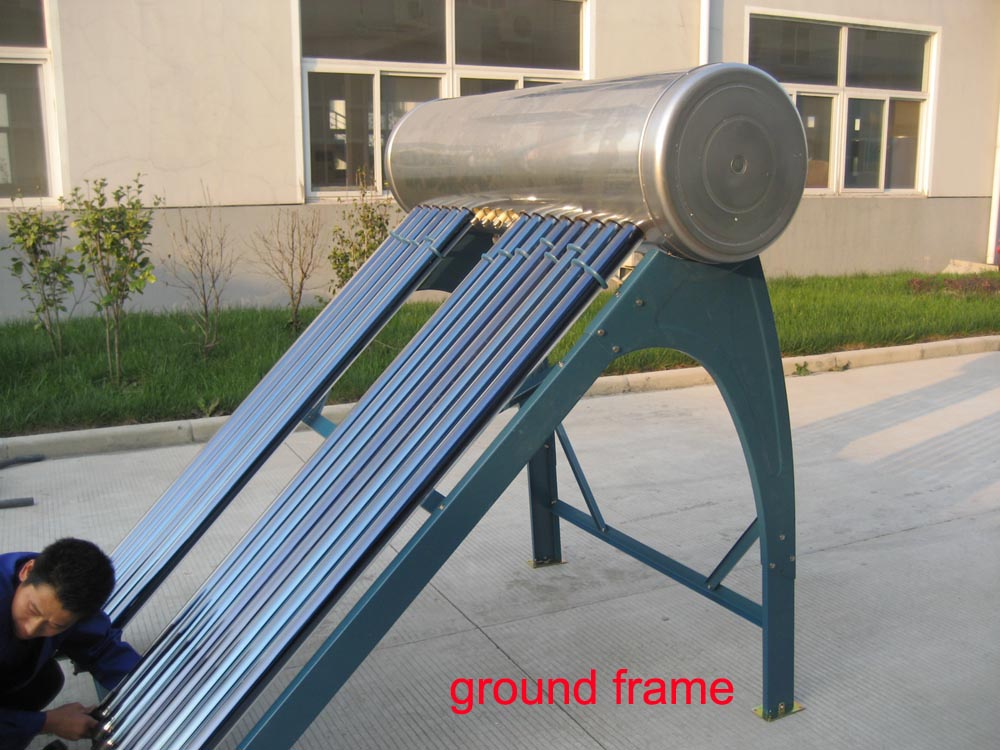

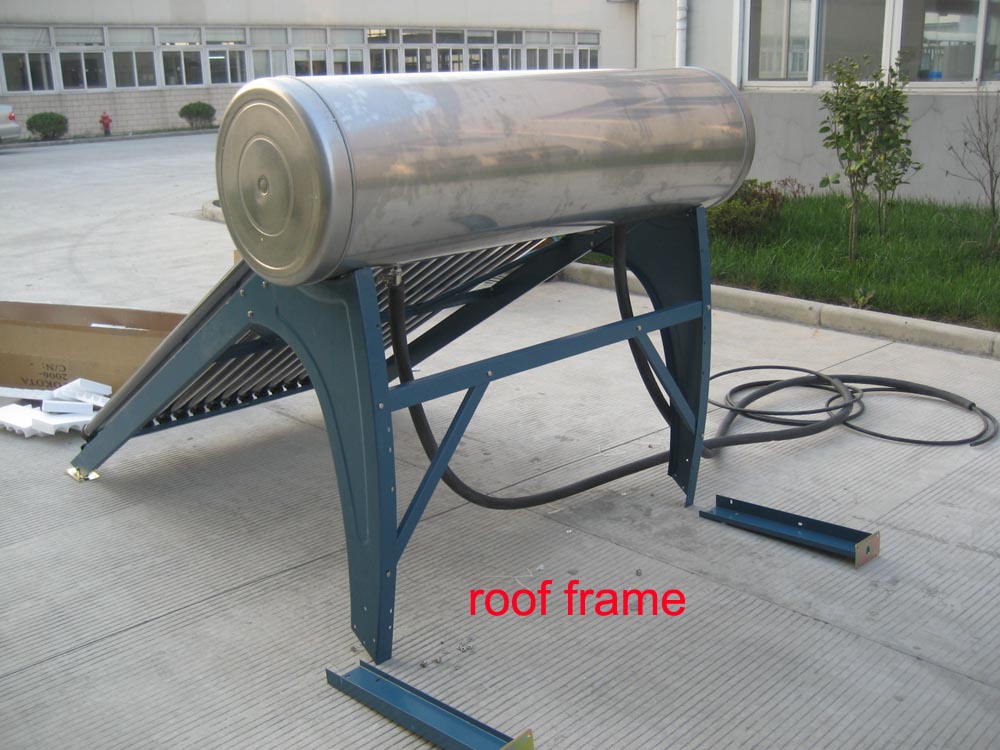

| without reflector plates, Roof style and ground style together. |
|
| 9. Fitted high quality safety valve( 0.65Mpa),automatic air-out valve(110C,1.0Mpa). |
|
| 10. System working pressure: 0.65Mpa, testing pressure: 1.2Mpa |
|
|
| *** (CHOOSE)All the items can be fitted with electric heater as backup, 1500W, 220V, 50Hz |
|

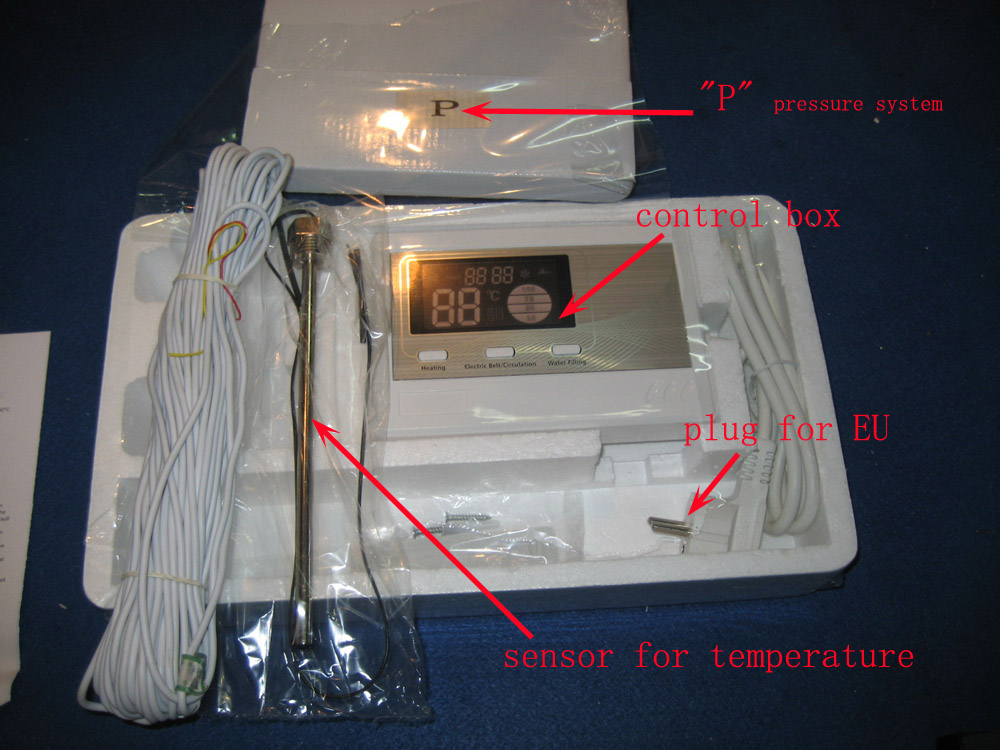

| *** (CHOOSE) Electric heater controller |
|
|
|
|
