| Compact non-pressure solar water heater |
|
| |
|
| Item |
Absorbing Area |
Capacity |
Insulation layer |
Installing size |
Loading(sets) |
|
| |
m2 |
Liter |
mm |
mm |
20' |
40' |
|
| HY-1647-15 |
1.39 |
120 |
45mm |
1190x1523x1510 |
62 |
114 |
|
| HY-1647-18 |
1.67 |
150 |
1358x1523x1510 |
46 |
108 |
|
| HY-1647-21 |
1.95 |
180 |
1584X1523X1510 |
44 |
106 |
|
| HY-1647-24 |
2.24 |
200 |
1775x1523x1510 |
42 |
90 |
|
| HY-1647-30 |
2.8 |
240 |
2165x1523x1510 |
38 |
79 |
|
| |
|
|
|
|
|
|
| HY-1658-15 |
1.6 |
140 |
50mm |
1340x1623x1575 |
50 |
104 |
|
| HY-1658-18 |
1.93 |
155 |
1565x1623x1575 |
46 |
96 |
|
| HY-1658-21 |
2.26 |
170 |
1825X1623X1575 |
42 |
88 |
|
| HY-1658-24 |
2.59 |
220 |
2015x1623x1575 |
40 |
82 |
|
| HY-1658-30 |
3.25 |
280 |
2465x1623x1575 |
31 |
66 |
|
| HY-1658-36 |
3.9 |
330 |
|
29 |
58 |
|
| |
|
|
|
|
|
|
| HY-1858-15 |
1.93 |
150 |
50mm |
1340x1790x1750 |
43 |
94 |
|
| HY-1858-18 |
2.32 |
180 |
1790x1790x1750 |
37 |
78 |
|
| HY-1858-21 |
2.71 |
210 |
1825X1790X1750 |
33 |
68 |
|
| HY-1858-24 |
3.1 |
240 |
2015x1790x1750 |
30 |
61 |
|
| HY-1858-30 |
3.9 |
300 |
2465x1790x1750 |
23 |
46 |
|
| HY-1858-36 |
4.68 |
360 |
2925x1790x1750 |
15 |
30 |
|
| |
|
|
|
|
|
|
|
| 1. 58x1600/1800mm: tube diameter: 58/47mm(outer/inner), length:1600/1800mm |
|
|
| 47X1600mm: tube diameter: 47/37mm(outer/inner), length:1600mm |
|
|
| All tubes are SC( High efficiency style) tubes. |
|
|
|
|
| 2. Bladder material: SS304-2B, 0.41m thickness. |
|
|
|
|
| 3. Crust material: Zinc inside and color PU coated outside steel sheet, 0.35m thickness. |
|
| 4. Insulation layer: polyurethane foaming, 45-60mm thickness,Density: 38-40kg/m3 |
|
| 5. Using high quality high temperature silicon rings for sealing. |
|
|
|
| 6. All with new patent designing aluminum alloy/color coated steel end supports, |
|
|
| 7. KF style frame: Galvanized angle steel material, zinc plating inside and poly powder coated outside, suitable for roof and ground installing both. |
|
|
|
|
|
| 8. System working pressure:(automatic type) 0.3Mpa |
|
|
|

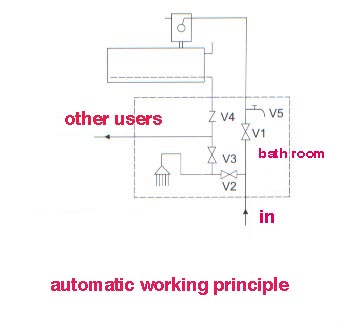

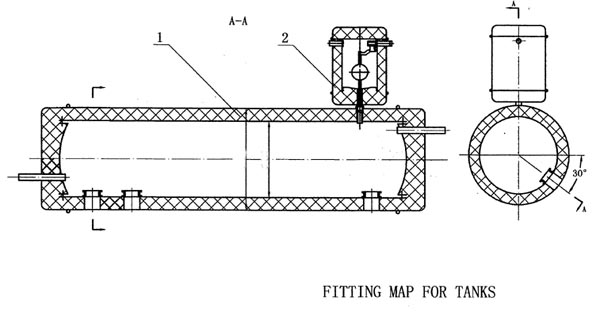

| 9. Automatic small tank ( chose for automatic style). |
|
|
|
| ***( CHOOSE) Can be fitted with electric heater as backup, 1500W, 220V, 50Hz |
|
|
| ***(CHOOSE) Can be fitted with special design control box |
|
|
|
