Heat pipe sets for pressure solar water heater

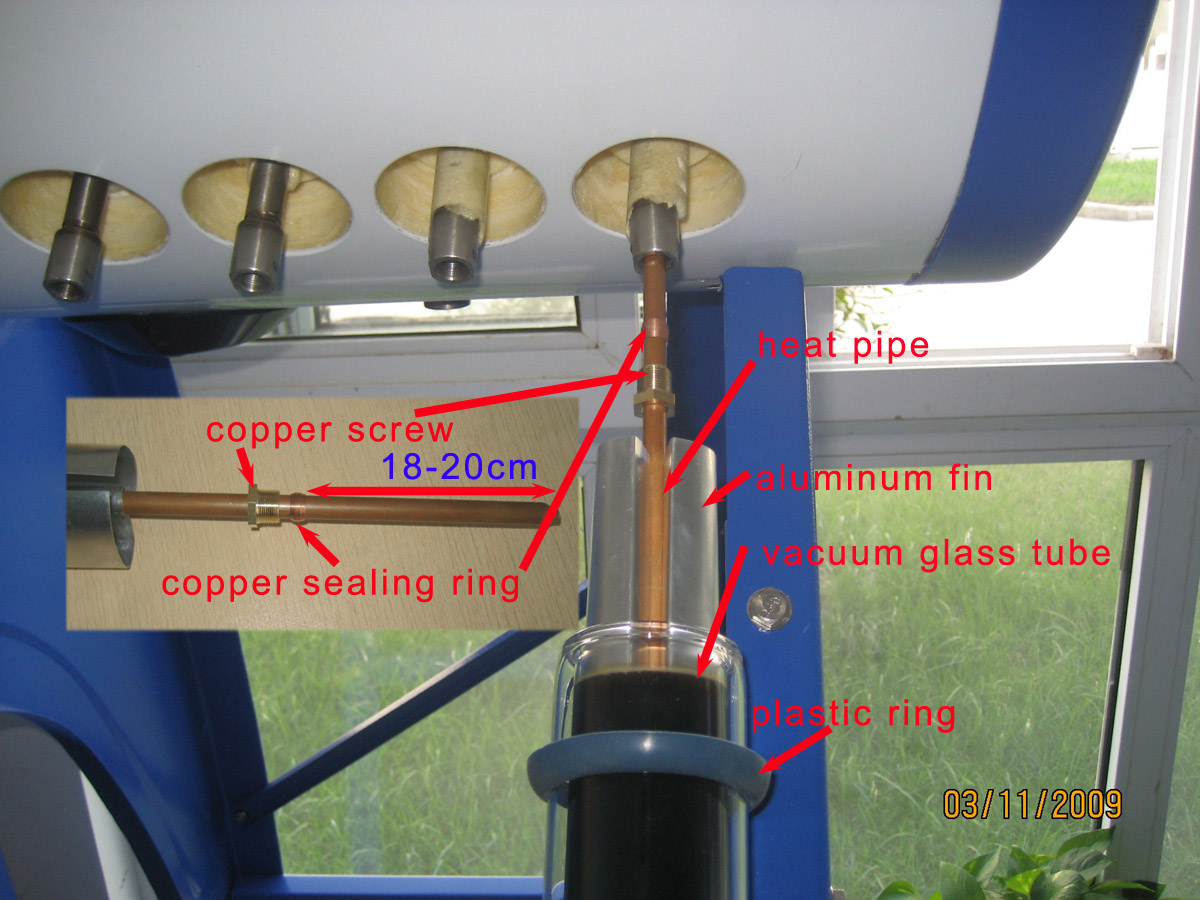

The heat pipe sets is including: small heat pipe + aluminum alloy fin + copper sealing ring + copper sealing screw

Heat pipe: it is a kind of energy transferring medium copper pipe, small quantity inorganic liquid inside, closed and vacuum, the medium liquid can transfer the energy from the bottom part of the heat pipe to the top part very quickly with small temperature different, and only in one way, continuing the steps: liquid - air - liquid.

Diameter: 8mm Length: 1750mm Material: TP2 copper

Aluminum alloy fin: which cover the heat pipe tightly, and tough the inner side of the inner tube, help to transfer the energy to the heat pipe.

Copper sealing ring and copper sealing screw: Which copper sealing sets are specially desinged to seal the heat pipe with the inner water tank, it is a kind of mechanical sealing method, safe and longer lifetime.

Working pressure: 0.65Mpa, testing pressure: 1.2Mpa.
