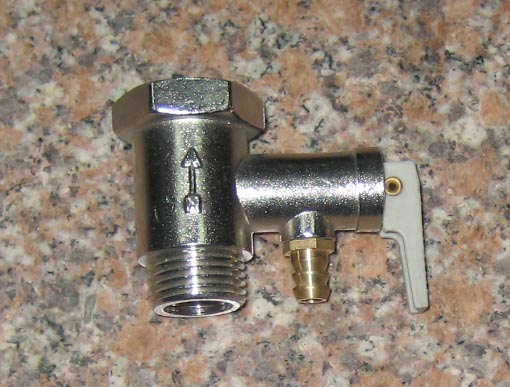

Safety valve for pressure solar water heater

As one of the most important safety equipment for pressure water heating systems, the safety valve is very important to protect the pressure water tank, keep the water pressure inside the water tank is a safe limit.

Material: copper Diameter: 1/2" or 3/4"

Function: Working pressure: 0.65Mpa , temperature: 110C, one-way valve,

Installing: joint with the cold water inlet pipe, cold water come from this valve and into the water tank.

Working: if the water pressure inside the tank is lower than 0.65Mpa, the valve doesn't work, whenever the pressure is higher than 0.65Mpa, then it works automaticlly, leaking water outer from the leaking mouth, till the pressure is in the safe limit.

Remark: When you finish the installing of the complete system, and loading water in, don't forget to test the safety valve, just pressure the button, if there are water leaking, that means it is in good condition.

Every 2 years, please do a regular checking/examination of this valve.
