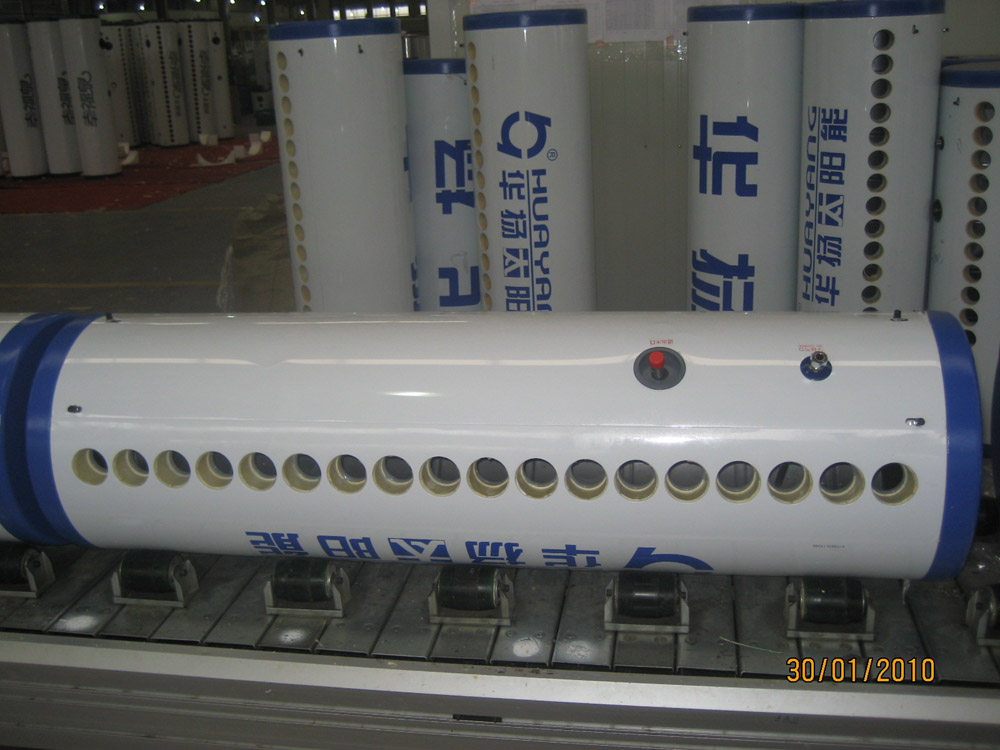

Compact non-pressure water tank
It is the main and biggest part of the compact non-pressure system.
Inner tank: SUS304-2B, thickness: 0.5mm
Insulation laye: high quality PU foaming layer, thickness: 40-60mm, density: 35-45kgs/m3
Curst/shell: zinc inside, PU powder coated outside / stainless steel , thickness: 0.4mm
With N pieces of the holes for vacuum glass tubes, one hole for water inlet/outlet on the tank side or bottom, air-hole on the top of the water tank.
Also can be fitted with electric heater as backup, together with the temperature sensor hole.
Size( inner/outer): 340/425mm, 360/460mm, 360/490mm.
| Item |
Absorbing Area |
Capacity |
Insulation layer |
Installing size |
| |
m2 |
Liter |
mm |
mm |
| HY-1647-15 |
1.39 |
120 |
45mm |
1190 |
| HY-1647-18 |
1.67 |
150 |
1358 |
| HY-1647-21 |
1.95 |
180 |
1584 |
| HY-1647-24 |
2.24 |
200 |
1775 |
| HY-1647-30 |
2.8 |
240 |
2165 |
| |
|
|
|
|
| HY-1658-15 |
1.6 |
140 |
50mm |
1340 |
| HY-1658-18 |
1.93 |
155 |
1565 |
| HY-1658-21 |
2.26 |
200 |
1825 |
| HY-1658-24 |
2.59 |
220 |
2015 |
| HY-1658-30 |
3.25 |
280 |
2465 |
| HY-1658-36 |
3.9 |
330 |
|
| |
|
|
|
|
| HY-1858-15 |
1.93 |
150 |
50/55mm |
1340 |
| HY-1858-18 |
2.32 |
180 |
1790 |
| HY-1858-21 |
2.71 |
210 |
1825 |
| HY-1858-24 |
3.1 |
240 |
2015 |
| HY-1858-30 |
3.9 |
300 |
2465 |
| HY-1858-36 |
4.68 |
360 |
| |
