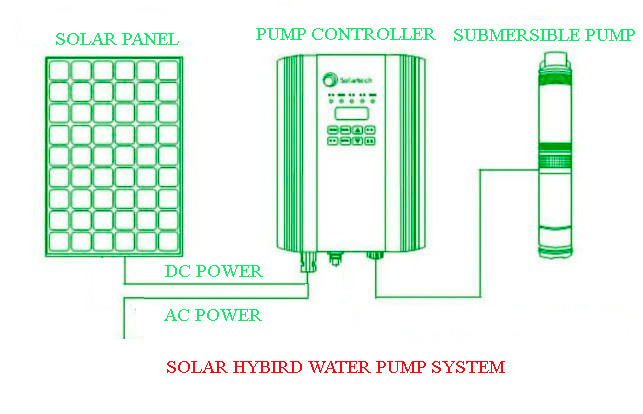

Solar HYBIR water pump system, components are including: solar power system + high speed water pump set + hybrid solar water pump controller. The water pumps will be powered by the DC/AC power (220V or 380V) from solar hybrid system + public grid power (220V / 380V ), which are popularly used in dry regions for irrigation of agriculture , commercial projects, for drinking water and living water supplying, special for the markets need long time working markets, such as 24h working or night working projects.

This high speed solar submersible water pump is different from the normal DC or AC submersible pump, which working speed is up to 7200rpm, while the normal water pump working speed is only 2850rpm, so more working efficiency or flow rate, that means more daily output.

This hybrid solar water pump controller is also a kind of frequency changed controller , offer different voltage or power to the high speed water pump motor at different solar radiation, so the flow rate of the water pump will be changed according to the time solar radiation, more higher solar radiation then more higher flow rate, max using the daily solar power.

After sunset or at night, the hybrid system also can be switched to the public grid power automatically or by hand as requirements.

That is a kind of real 7x24h working system, best for irrigation of agriculture or special working time projects.

Working voltage of the pump motor / solar AC system: 220VDC / 380VDC / 380VAC,

Power: 0.5HP – 150HP

Diameter of the output of the DC submersible pump: 2 inch / 3 inch / 4 inch/ 5inch

Max flow rate: 0 - 180,000m3/h

Max head : 0 - 900FT

The final solar water system will be made according to your exact requirements or project specifications and local working conditions.
